TISSUE EMBEDDING SYSTEM

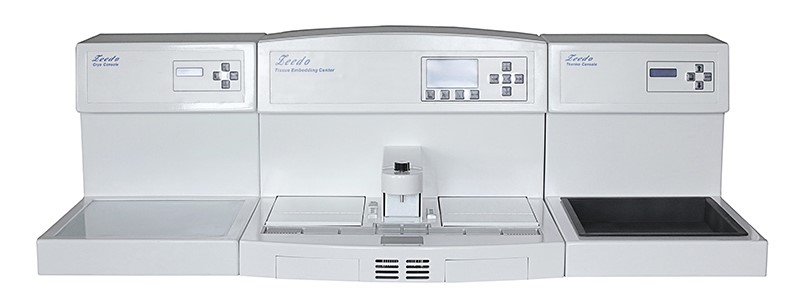

The Paraffin Embedding System ES500 is composed of three modules: the main console, a cooling plate, and a heating tank. Its large work surface enables the simultaneous processing of multiple samples, enhancing workflow efficiency. The system features a user-friendly control panel for setting the temperature and start time, allowing for precise and customizable operation.

• Wax Melting Cylinder Capacity: 6 liters
• Simultaneous Processing Capacity: Up to 400 wax blocks
• Automatic Work Time Programming: Up to 7 days
• Independent Temperature Control: Five separate blocks, adjustable from 0℃ to 99℃
• Working Temperature Ranges:
• Cooling Plate: 0℃ to -20℃, adjustable in 1℃ increments
• Heating Capacity: 30℃ to 90℃, adjustable in 1℃ increments
• Control Options: Manual control or foot switch
• Illumination: LED lamp
• Overall Dimensions:
• Main Console: 600 mm × 650 mm × 450 mm
• Cooling Plate: 410 mm × 660 mm × 450 mm
• Heating Capacity: 410 mm × 620 mm × 440 mm
• Weight: 64 kg
